D-Shape Cable Assemblies
Cinch's d-shape cable assemblies come in a range of shell sizes, all with optimized shielding and EMI protection.
Attribute Filters
Assembly Type
Connector Type
Gender
No. of Positions
Wire Length (mm)
Wire Length (in)
Wire Type
Wire Jacket
Shell Finish
Shell Material
393 Product(s)
Show Filters
Hide Filters
| Product | Brand | Assembly Type | Connector Type | Gender | No. of Positions | Wire Length (mm) | Wire Type | Wire Jacket | Shell Finish | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|

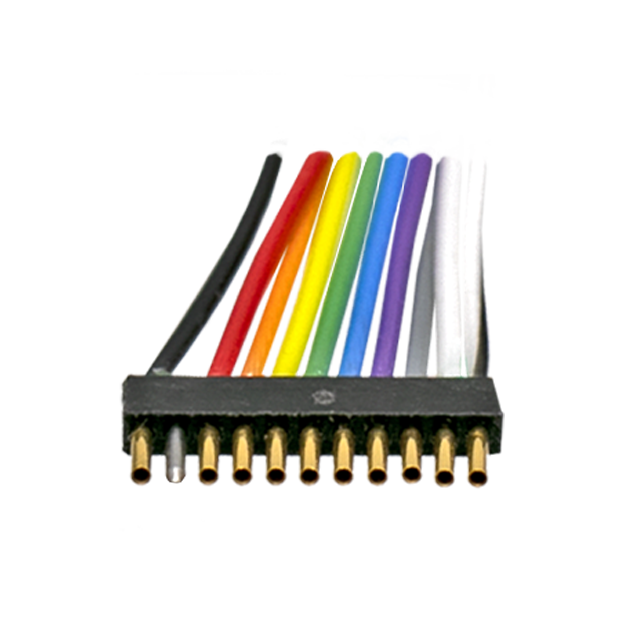

| Dura-Con | Strip | Plug | Male | 10 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 10 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 10 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 10 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 12 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 12 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 12 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 12 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 2 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 2 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 2 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 2 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 4 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 4 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 4 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 4 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 6 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 6 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 6 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 6 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 8 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Plug | Male | 8 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 8 | 457 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Strip | Socket | Female | 8 | 914 | 24 AWG, PTFE Insulated, Stranded Wire Colored (MIL-W-16878/4) | N/A | N/A | N/A | |
| Dura-Con | Jumper | Plug to Plug | Male | 100 | 457 | 26 AWG, Insulated, Stranded Wire (MIL-W-16878/4) | N/A | Electroless Nickel | Aluminum alloy |
Drawing
3D Model
DCCM100GP6E5-18.0BN
Plug to Plug Jumper
100 position
Nickel plated aluminum shell
18"
Repeating 10 colors of MIL-STD-681 wire
100 position
Nickel plated aluminum shell
18"
Repeating 10 colors of MIL-STD-681 wire
