Search D-Shape Accessories - Cinch Connectivity Solutions

Product	Accessory Type	Backshell length (mm)	No. of Positions	Mounting Hardware	Shell Finish	Shell Material	Min Operating Temp. (°C)	Max Operating Temp. (°C)	Sleeve Ring	Min Operating Temp. (°F)	Wire Entry Diameter (mm)	Max Operating Temp. (°F)
DCBST09AC Drawing 3D Model	Backshell	19	9	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	3.96	390

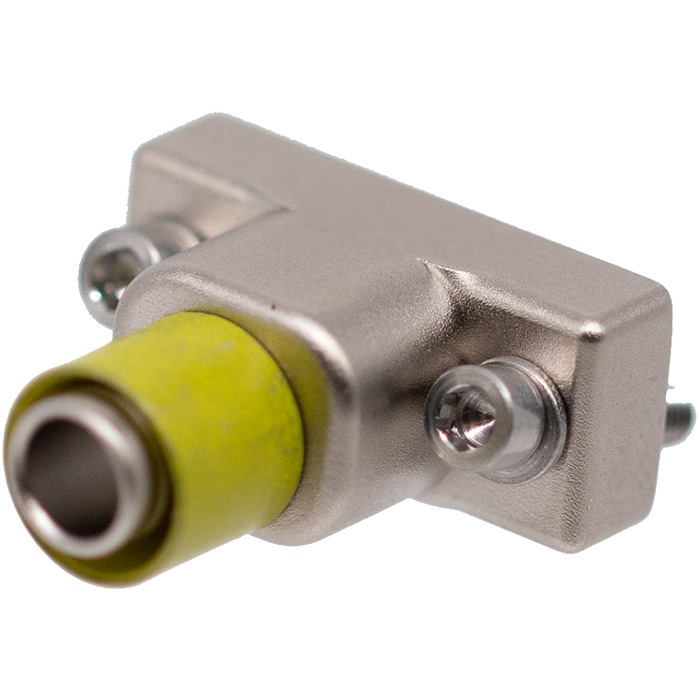

DCBST09AFN Drawing	Backshell	19.1	9	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	4.06	390
DCBST09AN Drawing 3D Model	Backshell	19	9	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	3.96	390

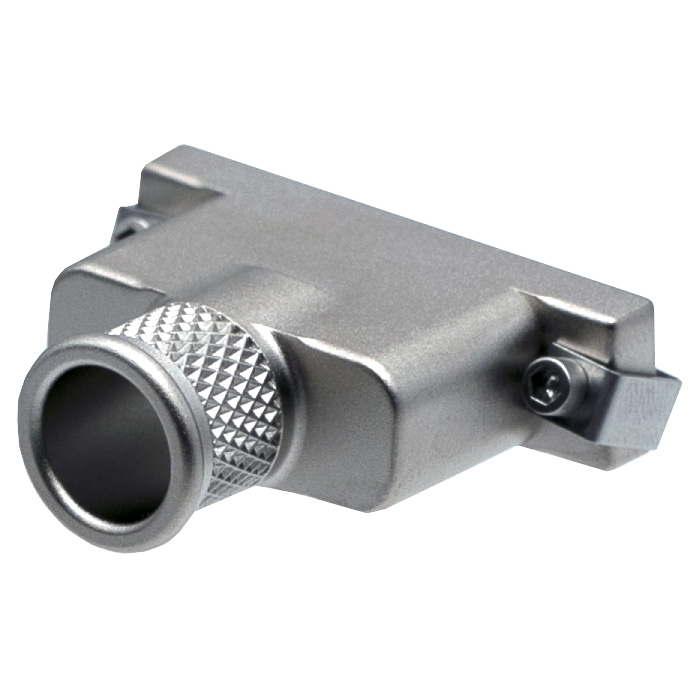

DCBST100HC Drawing	Backshell	32	100	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	9.53	390
DCBST100HFN Drawing	Backshell	28.6	100	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	12.45	390
DCBST100HN Drawing	Backshell	32	100	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	9.53	390
DCBST15BC Drawing 3D Model	Backshell	22	15	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	4.78	390
DCBST15BFN Drawing	Backshell	20.4	15	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	4.06	390
DCBST15BN Drawing 3D Model	Backshell	22	15	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	4.78	390

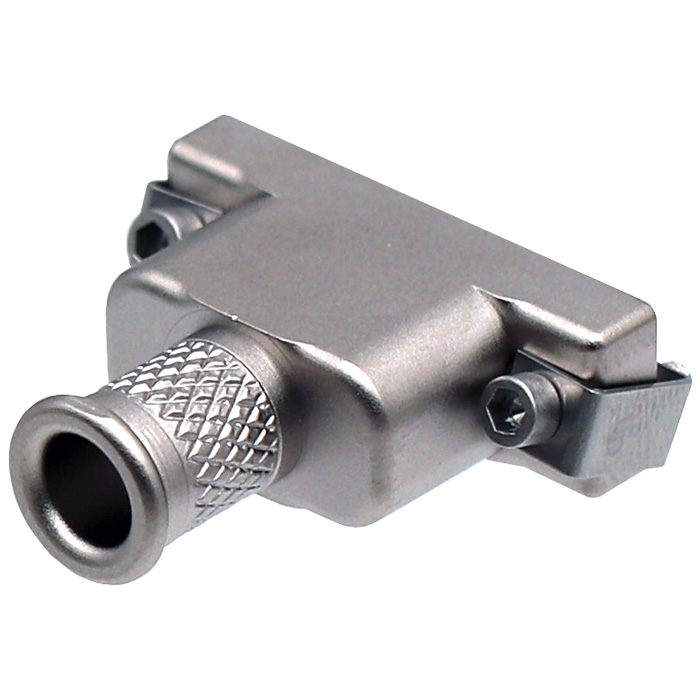

DCBST21CC Drawing 3D Model	Backshell	25	21	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	5.56	390
DCBST21CFN Drawing	Backshell	21.6	21	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	5.59	390
DCBST21CN Drawing 3D Model	Backshell	25	21	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	5.56	390

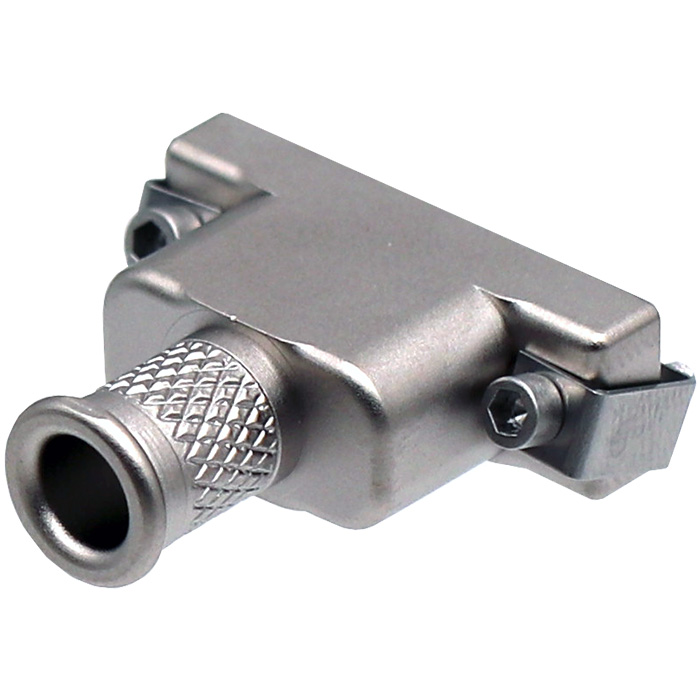

DCBST25DC Drawing 3D Model	Backshell	27	25	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	6.35	390

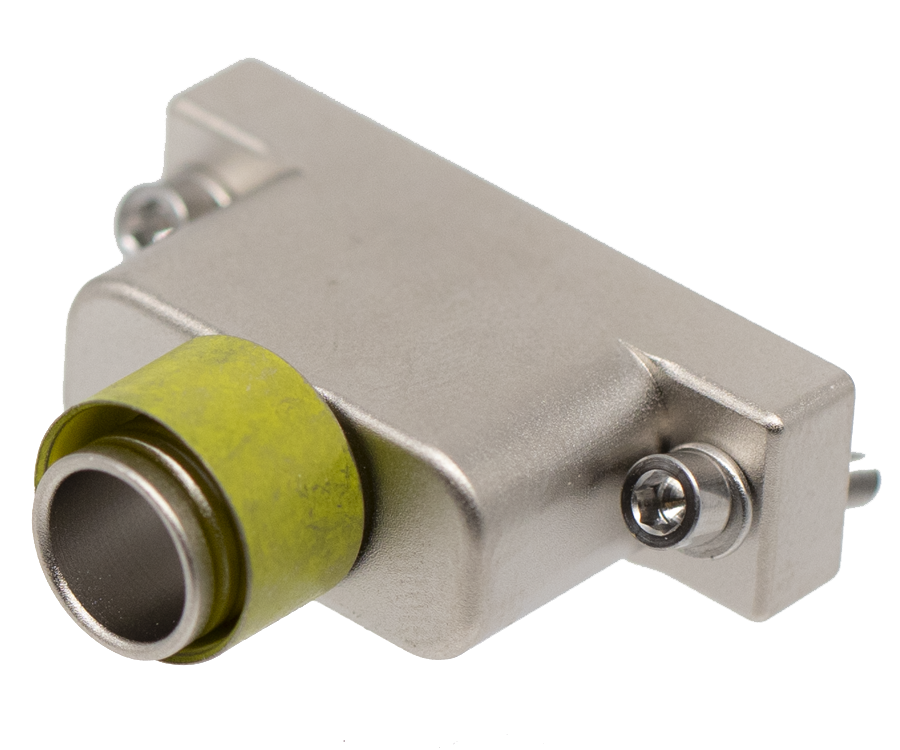

DCBST25DFN Drawing	Backshell	22.9	25	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	6.6	390
DCBST25DN Drawing 3D Model	Backshell	27	25	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	6.35	390
DCBST25HN Drawing	Backshell	27	25	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	9.53	390
DCBST31EC Drawing 3D Model	Backshell	28	31	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.14	390

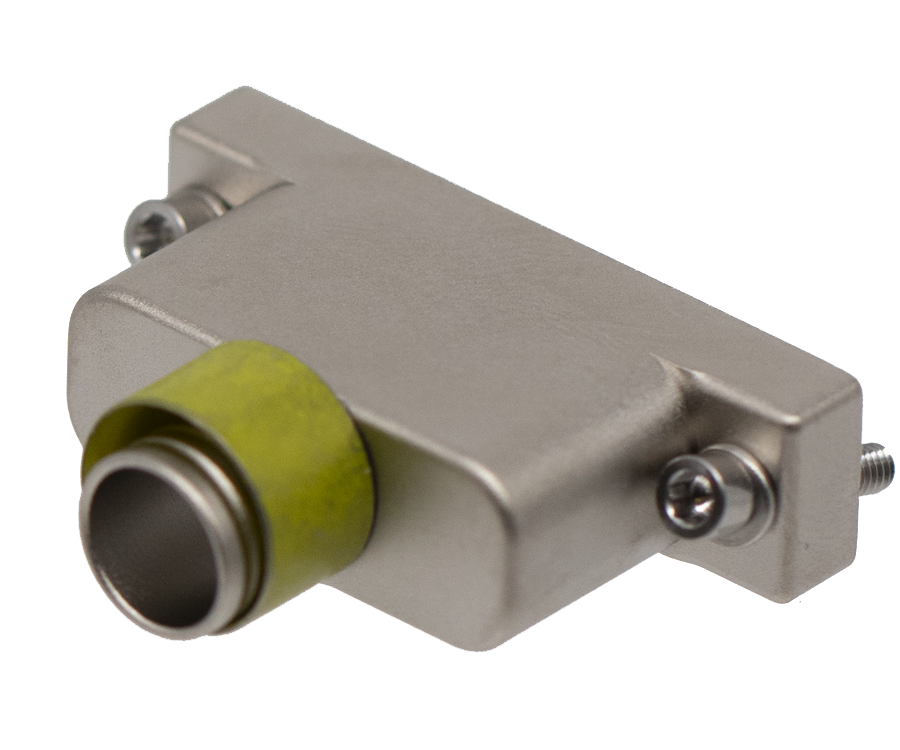

DCBST31EFN Drawing	Backshell	23.9	31	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	6.99	390
DCBST31EN Drawing 3D Model	Backshell	28	31	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.14	390

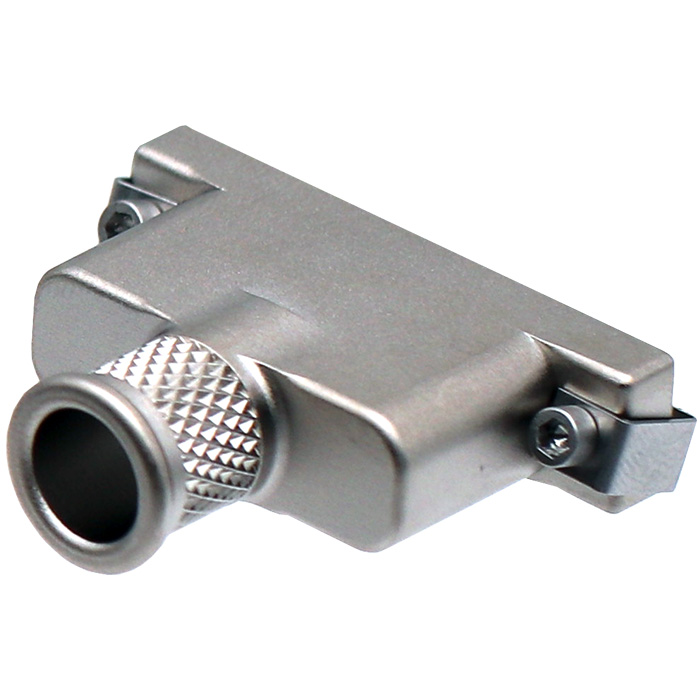

DCBST37EC Drawing 3D Model	Backshell	29	37	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.14	390
DCBST37EN Drawing 3D Model	Backshell	29	37	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.14	390

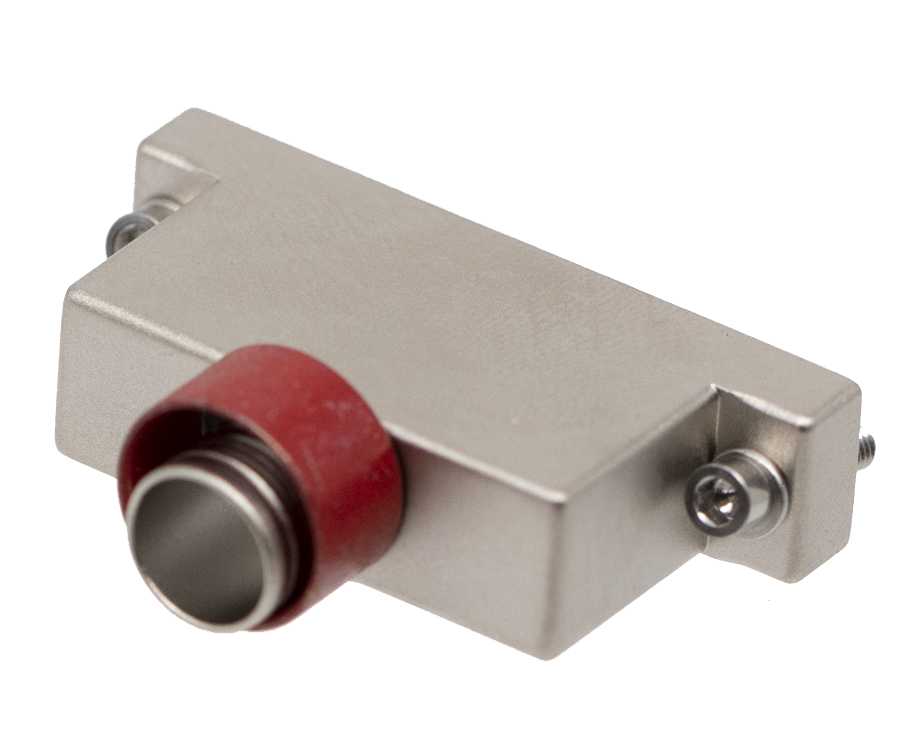

DCBST37FFN Drawing	Backshell	24.9	37	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	Crimp Ferrule for EMI	-65	7.24	390
DCBST37FN Drawing 3D Model	Backshell	29	37	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.92	390

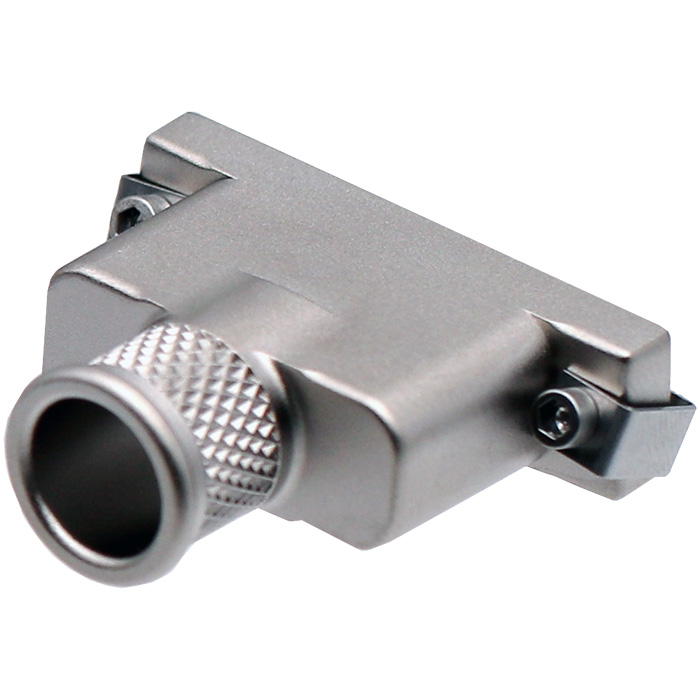

DCBST51FC Drawing 3D Model	Backshell	30	51	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Cadmium, Olive Drab over Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.92	390
DCBST51FN Drawing 3D Model	Backshell	30	51	2 no.2-56 Hex Head Jackposts, Locking Washers and Retaining Clips	Electroless Nickel	Aluminum Alloy	-55	200	None	-65	7.92	390
